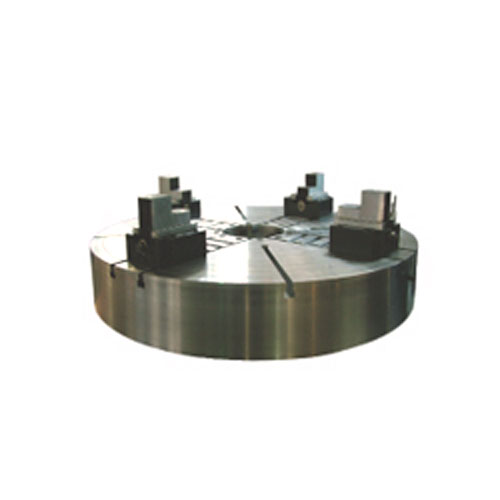

產品：K79
產品特性:
■特點：
☆單動可調，適用各種形狀工件的加工。
☆卸掉卡爪，可單獨作花盤使用。
☆采用增力絲桿，超大夾緊力。
☆廣泛用于大型立車。
■Specificity:
☆I(lǐng)ndependent and adjustment ，suitable for processing all kinds of special-shaped workpieces.
☆Unloading Jaws can be used as face plate.
☆Adapt force thread bar with super large gripping force.
☆I(lǐng)t is widely used in large-scale lying.
產品詳情
■尺寸、性能參數 Dimension、Characteristic Parameters
|
規格D
Size
|
主軸頭號
(1:X)
Spindle(1:X)
|
D
|
D1
|
D2
|
D3
|
H
|
H1
|
h1
|
h2
|
d
|
h3
|
z-d
|
最大允許
輸入扭矩N。m
Max input torque
|
最大夾緊力KN
Max clamping force
|
|
外夾
External
Clamp
|
內夾
Internal Clamp
|
|
K791600
(H25)
|
1:20
|
1600
|
330
|
480
|
380
|
250
|
260
|
-
|
-
|
41.3
|
16
|
11×M24
|
100
|
200
|
140
|
|
K792000
(H32)
|
1:30
|
2000
|
454
|
560
|
460
|
350
|
315
|
42
|
100
|
42
|
16
|
12×M36
|
130
|
250
|
180
|
|
K792000
(H33)
|
1:20
|
2000
|
330
|
480
|
400
|
255
|
265
|
-
|
|
42
|
16
|
11×M24
|
100
|
200
|
140
|
|
K792000
(H35)
|
A220
|
2000
|
412.775
|
463.6
|
407
|
200
|
315
|
40
|
|
41.3
|
16
|
12×M24
|
80
|
150
|
100
|
|
K792500
(H32)
|
1:30
|
2500
|
494
|
600
|
500
|
350
|
315
|
30
|
100
|
42
|
16
|
12×M36
|
130
|
250
|
180
|
|
