產品：k52/D
產品特性:
■特點：
☆與機床主軸直接連接，剛性好，精度高。
☆具有通孔，適合棒料加工。
☆性能可靠，經濟實用。
■Specificity:
☆This series chucks can be directly connected to the spindle noses of the machine tools,have nice rigidity and high accuracy.
☆With through hole and suitable for processing rod components.
☆The chucks are economic practical and with high performance reliability.
產品詳情

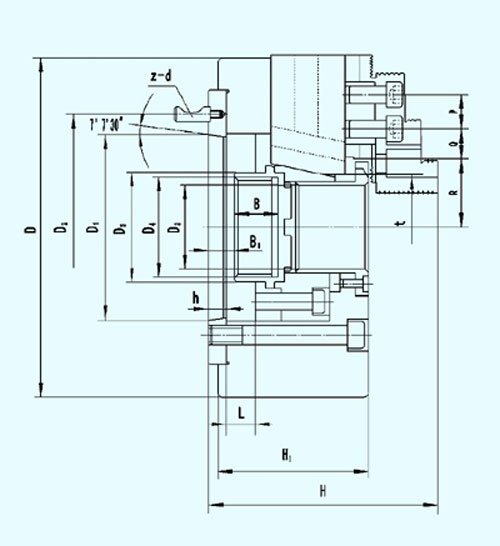

■尺寸參數 Dimension Parameters
|
規格D
Size
|
主軸頭號
Short taper
No.
|
D1
|
D2
|
D3
|
D4
|
D5
|
H1
|
H
|
h
|
P
|
Qmax
|
Qmin
|
Rmax
|
Rmin
|
B
|
B1max
|
B1min
|
z-d
|
|
160
|
5
|
82.563
|
104.8
|
25
|
M33×1.5
|
40
|
76
|
134
|
16
|
20
|
19
|
7
|
35
|
30.5
|
20
|
12
|
-5
|
6-M12×1.0
|
|
200
|
6
|
106.375
|
133.4
|
35
|
M42×1.5
|
50
|
85
|
150
|
18
|
24
|
25
|
9
|
43
|
38
|
24
|
14
|
-6
|
6-M16×1.5
|
|
250
|
8
|
139.719
|
171.4
|
52
|
M60×2
|
68
|
100
|
169
|
18
|
28
|
37
|
9
|
54.5
|
48
|
30
|
13
|
-12
|
6-M20×1.5
|
|
315
|
8
|
139.719
|
171.4
|
65
|
M76×2
|
90
|
110
|
211
|
38
|
32
|
44
|
11
|
73.5
|
67
|
18
|
43
|
18
|
6-M20×1.5
|
|
315
|
8
|
196.869
|
235
|
65
|
M76×2
|
90
|
110
|
193
|
20
|
32
|
44
|
11
|
73.5
|
67
|
28
|
15
|
-8
|
6-M22×1.5
|
■性能參數 Characteristic Parameters
|
規格D
Size
|
楔心套行程Lmax
Axial wedge stroke
|
爪行程（直徑）
Jaw stroke(Dia.)
|
許用推拉力kN
Max. draw pull
|
最大夾緊力kN
Max. gripping force
|
極限轉速r/min
Max. speed
|
夾緊范圍
Clpmping range
|
撐緊范圍
Jamming range
|
推薦氣缸P21
Rec.
cylinder
|
推薦油缸P23
Rec.
cylinder
|
凈重Kg
Net WT
|
|
160
|
17
|
9
|
14
|
27
|
3000
|
12-140(160)
|
60(30)-140(160)
|
160
|
100 125
|
11.5
|
|
200
|
20
|
10
|
23
|
45
|
2500
|
16-180(200)
|
75(36)-180(200)
|
160
|
125 160
|
19.5
|
|
250
|
25
|
13
|
33
|
68
|
2000
|
25-230(250)
|
96(45)-230(250)
|
200
|
160 200
|
31
|
|
315
|
25
|
13
|
43
|
90
|
1500
|
40-280(315)
|
110(60)-280(315)
|
250
|
200
|
51
|
產品備注
※表中()數值適用于軟卡爪,[]數值適用于十字鍵卡盤。
※The () on the above table is for soft jaw chucks , the [] is for cross tenon jaw chucks.
|
