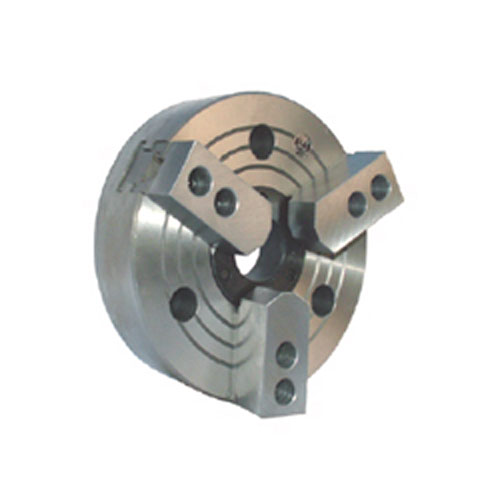

產品：K52
產品特性:
■特點：
☆短圓柱連接形式。
☆具有通孔,適合棒料加工。
☆性能可靠,經濟實用。
■Specificity:
☆Short cylindrical center mounting.
☆With thru-hole and suitable for processing rod components.
☆The chucks are economic practical and with high performance reliability.
產品詳情
■尺寸參數 Dimension Parameters
|
規格D
Size
|
D1
|
D2
|
D3
|
D4
|
D5
|
H1
|
H
|
h
|
P
|
Qmax
|
Qmin
|
Rmax
|
Rmin
|
B
|
B1max
|
B1min
|
z-d
|
|
160
|
140
|
104.8
|
25
|
M33×1.5
|
40
|
76
|
123
|
4
|
20
|
19
|
7
|
35
|
30.5
|
20
|
-4
|
-21
|
3-M10
|
|
200
|
170
|
133.4
|
35
|
M42×1.5
|
50
|
85
|
137
|
4
|
24
|
25
|
9
|
43
|
38
|
24
|
-4
|
-24
|
3-M12
|
|
250
|
220
|
171.4
|
52
|
M60×2
|
68
|
100
|
156
|
5
|
28
|
37
|
9
|
54.5
|
48
|
30
|
-5
|
-30
|
3-M16
|
|
315
|
300
|
235
|
65
|
M76×2
|
90
|
110
|
178
|
5
|
32
|
44
|
11
|
73.5
|
67
|
28
|
-5
|
-30
|
3-M20
|
|
400
|
380
|
330.2
|
90
|
M100×3
|
115
|
125
|
204
|
5
|
45
|
57.5
|
12.5
|
89
|
81
|
35
|
-5
|
-35
|
6-M20
|
|
540C
|
440
|
330
|
177
|
M195×3
|
208
|
136
|
230
|
5.5
|
50
|
81.5
|
12.5
|
135
|
127
|
35
|
-5.5
|
-35.5
|
6-M20
|
|
630B
|
560
|
430
|
252
|
M265×4
|
282
|
143
|
225
|
6
|
—
|
—
|
—
|
—
|
—
|
40
|
-6
|
-36
|
6-M24
|
■性能參數 Characteristic Parameters
|
規格D
Size
|
楔心套行程Lmax
Axial wedge stroke
|
爪行程（直徑）
Jaw stroke(Dia.)
|
許用推拉力kN
Max. draw pull
|
最大夾緊力kN
Max. gripping force
|
極限轉速r/min
Max. speed
|
夾緊范圍
Clpmping range
|
撐緊范圍
Jamming range
|
推薦氣缸P21
Rec.
cylinder
|
推薦油缸P23
Rec.
cylinder
|
凈重Kg
Net WT
|
|
160
|
17
|
9
|
15
|
30
|
3000
|
12-140(160)
|
60(30)-140(160)
|
160
|
100 125
|
11.5
|
|
200
|
20
|
10
|
25
|
50
|
2500
|
16-180(200)
|
75(36)-180(200)
|
160
|
125 160
|
19.5
|
|
250
|
25
|
13
|
35
|
75
|
2000
|
25-230(250)
|
96(45)-230(250)
|
200
|
160 200
|
30.4
|
|
315
|
25
|
13
|
48
|
100
|
1500
|
40-280(315)
|
110(60)-280(315)
|
250
|
200
|
50
|
|
400
|
30
|
16
|
70
|
155
|
1000
|
40-370(400)
|
150(60)-370(400)
|
—
|
200
|
—
|
|
540C
|
30
|
16
|
110
|
245
|
700
|
(120)-(540)
|
(140)-(540)
|
—
|
300
|
—
|
|
630B
|
30
|
16
|
150
|
334
|
500
|
[50]-[630]
|
[70]-[630]
|
—
|
300
|
—
|
產品備注
※表中()數值適用于軟卡爪,[]數值適用于十字鍵卡盤。
※The () on the above table is for soft jaw chucks , the [] is for cross tenon jaw chucks.
|
