產品：K45
產品特性:
■特點：
☆與數控車床配套用于鋁合金摩托車輪轂的切削、加工。
☆結構緊湊，定心精度高，動平衡好。
☆可用于14″、15″、16″、17″摩托車輪轂的夾持加工。
■Specificity:
☆K45M17 wheel hub chuck in motorcycle matches with CNC machine tools used in cutting and processing of aluminium alloy motorcycle’s wheel hub.
☆It has compact structure、high centring precision and high stability.
☆Fitted to clamp motorcycle’s wheel hub in 14″、15″、16″、17″.
產品詳情

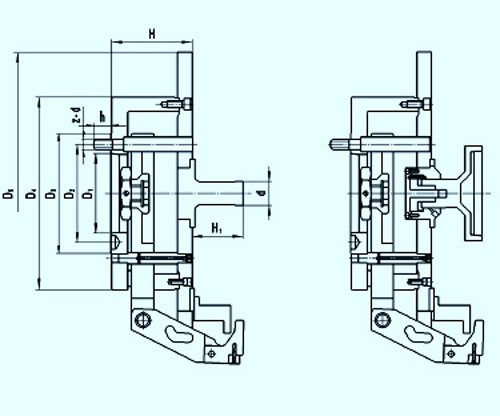

■尺寸參數 Dimension Parameters
|
規(guī)格
Size
|
D1
|
D2
|
D3
|
D4
|
D5
|
d
|
h
|
H
|
H1
|
z-d
|
|
K45M17/A28
|
139.719
|
171.4
|
210
|
333
|
430
|
42
|
30
|
140.5
|
88.5
|
15-M18
|
■性能參數 Characteristic Parameters
|
規(guī)格
Size
|
行程
Stroke
|
最大夾緊力kN
Max. gripping force
|
極限轉速r/min
Max. speed
|
夾緊范圍
Clamping range
|
|
K45M17/A28
|
25
|
28.5
|
2000
|
14″-17″
|
|
